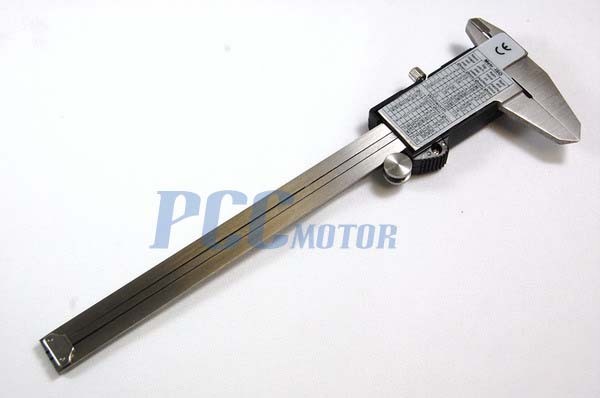

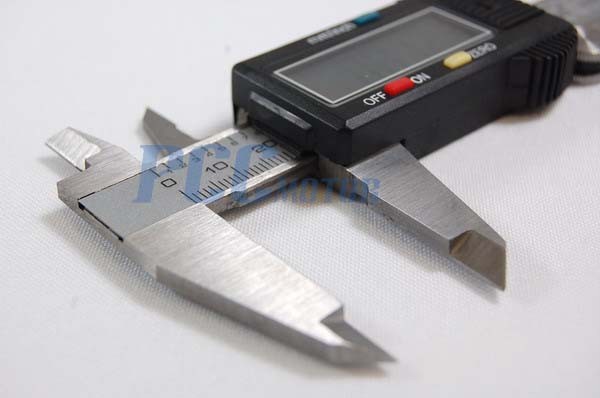

6" LCD Digital Vernier Caliper/Micrometer Gauge TK06

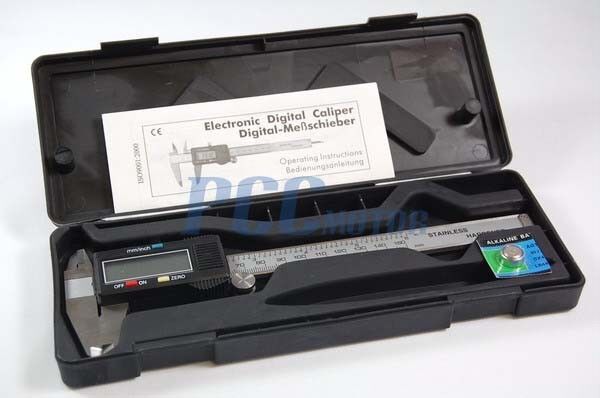

6 Inch Large Display Digital Caliper With Data Interface and Molded Case
CONDITION: BRAND NEW
0-150mm digital caliper
Power: One 1.5V button cell
Measuring speed: <= 1.5m/s
Relative humidity: <80%
Zero setting at any position, easy to take relative measurements.
Metric/Inch system interchanges at any position.
With data output interface, data can be transferred twice. The cycle is 300ms(20ms in fast reading state). Transmitting time: 0.5ms. Four wires(from left to right): Negative power(-), Clock pulse CP, Data D, Positive power(+). Pulse range of date: “0” Level<0.2V, Level “1”>1.3V. Clock Pulse CP: 90K Hz, effective for high electrical level.
Special function: With data holding, fast display, fast tracing Maximum and Minimum value during measurements, conversion between relative and absolute measurement and tolerance zone setting.
