Fork Forks FASTACE AS-01 XR/CRF50 50 KLX DNM Marzocchi FK06

Fork Forks FASTACE AS-01 XR/CRF50 50 KLX DNM Marzocchi FK06
Item# FK06
$399.95
With FastAce Axle AX09? :

Product Description

eBay Image Hosting at www.auctiva.com

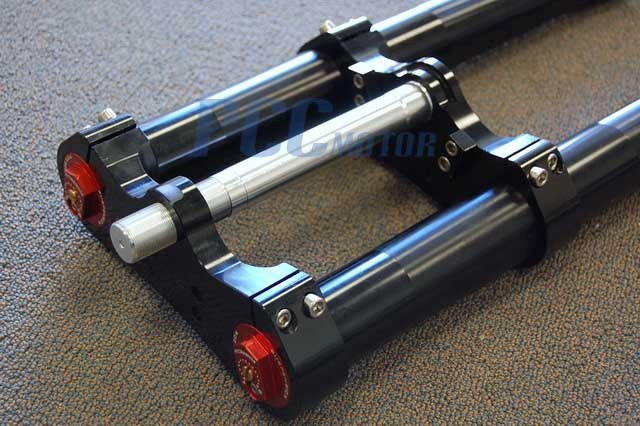

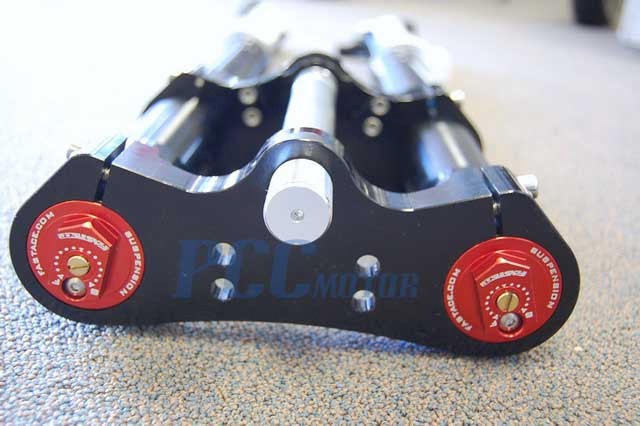

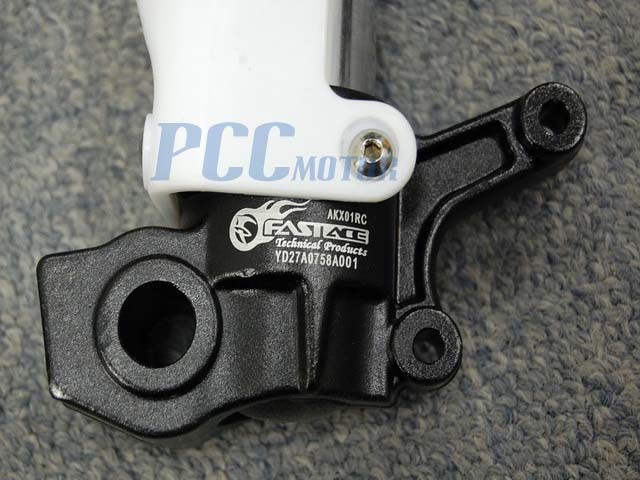

FAST ACE AS-01(AKX01RC) USD FRONT FORKS w/ TRIPLE TREE For Modified CRF XR50 XR CRF50 50 70



 CONDITION: BRAND NEW

Retail Price: $594.99





Fastace AS-01(AKX01RC) Front Forks Stage 3 for Pit Dirt Bikes. These Marzocchi Replica forks are billet aluminum made. It has Fork Guards as well as a fully adjustable top clicker system, allowing you to dial in the suspension at any moments notice. You can also add or removed fork oil to adjust soft and hard. It comes with everything you see in the picture. These are RACE READY forks and they will work with crf50, xr 50, xr70, and their China clones. This will also work with KLX, DRZ, and KX65. If you need the front brakes, wheel, etc we do sell those separately. Features include: Remote Chamber; Durable Design; Rebound Damping Adjustment; Easy Turn Spring Pre-Load, Nitrogen-Charged; Oil damping with Internal Floating Piston; Service Friendly

Specifications:


    • AL6061-T6 Shock body and right / left lower foot forged. inner tubes are made of the better aluminum AL7050 material
    • Air and oil pressure shock absorber.
    • Externally adjustable compression and rebound dampening, and spring pre-load in each leg
  • 730mm Length
  • 200mm Travel

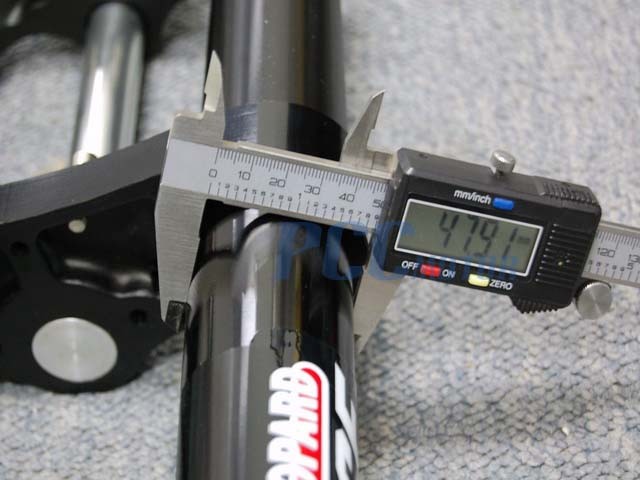

  • 35mm Fork Tube

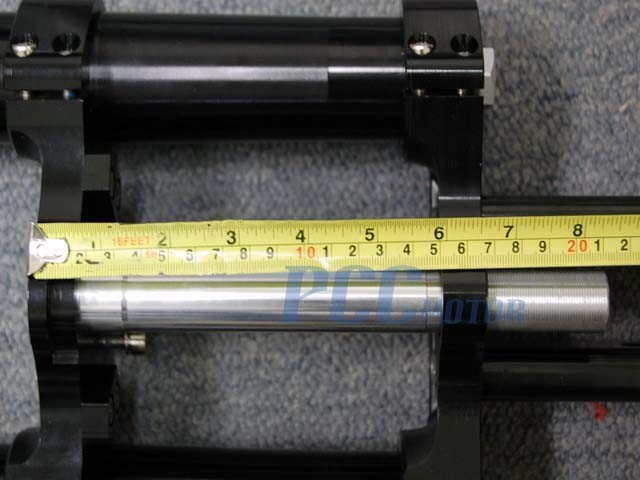

  • 15mm axle
  • 8.5" stem length

eBay Image Hosting at www.auctiva.com

eBay Image Hosting at www.auctiva.com

eBay Image Hosting at www.auctiva.com

eBay Image Hosting at
www.auctiva.com

eBay Image Hosting at www.auctiva.com

eBay Image Hosting at www.auctiva.com

eBay Image Hosting at www.auctiva.com

Free Image Hosting at www.auctiva.com



* Steel spring and oil pressure damping designing on both sides, featuring excellent balance degree and high stabilization.



* There are three adjustment functions: compression, rebound resistance and air pressure which can satisfy shock absorbing needs upon various rough road conditions.



* Entire aluminum alloy configuration and imported aluminum material are applied. The major parts are made of aluminum material in the #7 style with unique technics(The stanchion tube itself is made of high strength aluminum, the surface is specially processed), featuring light weight, high intension, abrasive resistance and longevity of service.



* The slider is made of CNC aluminum alloy and the slider bushing is made by Teflon, no static friction.



* The spring is made by good quality steel.

Free Image Hosting at www.auctiva.com

(Axle sold separately)
